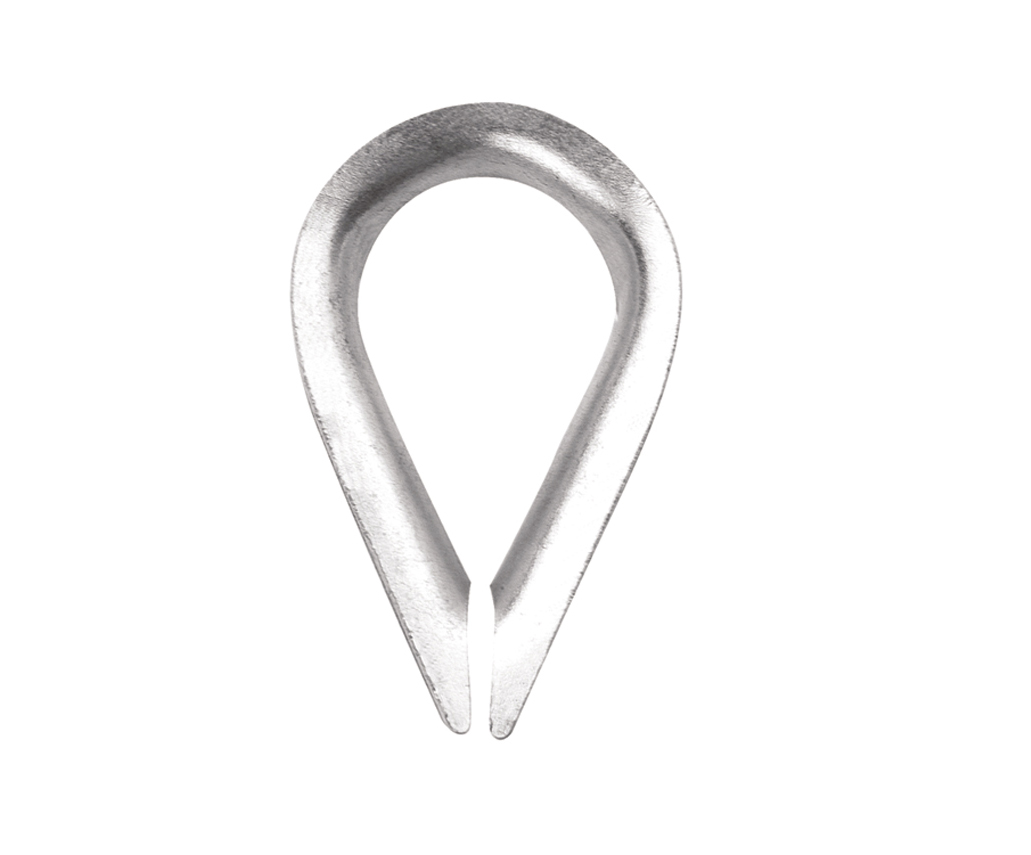

Steel wire loop
Material: A3 steel or 15, 35 high-quality carbon steel
Surface treatment: hot dip galvanized
Rated safety load: not less than 32% of the minimum breaking tension of the wire rope.
Use matters: The selection of the collar should be consistent with the specifications of the steel wire rope, and the diameter of the shaft pin used should not be less than twice the diameter of the steel wire rope
Surface treatment: hot dip galvanized
Rated safety load: not less than 32% of the minimum breaking tension of the wire rope.
Use matters: The selection of the collar should be consistent with the specifications of the steel wire rope, and the diameter of the shaft pin used should not be less than twice the diameter of the steel wire rope
Ordering Consultation
Service Hotline：
|
Product Introduction
鋼絲繩索具套環又稱雞心環，帶有繩槽，供繩索末端環繞扎結，以防繩纜過度彎曲和磨損，并可連接其他構件的心型金屬環。
套環的報廢標準編輯
1、套環有裂紋或破損，應報廢。
套環的報廢標準編輯
1、套環有裂紋或破損，應報廢。
2、套環與鋼絲繩接觸有嚴重繩刻痕，應報廢
