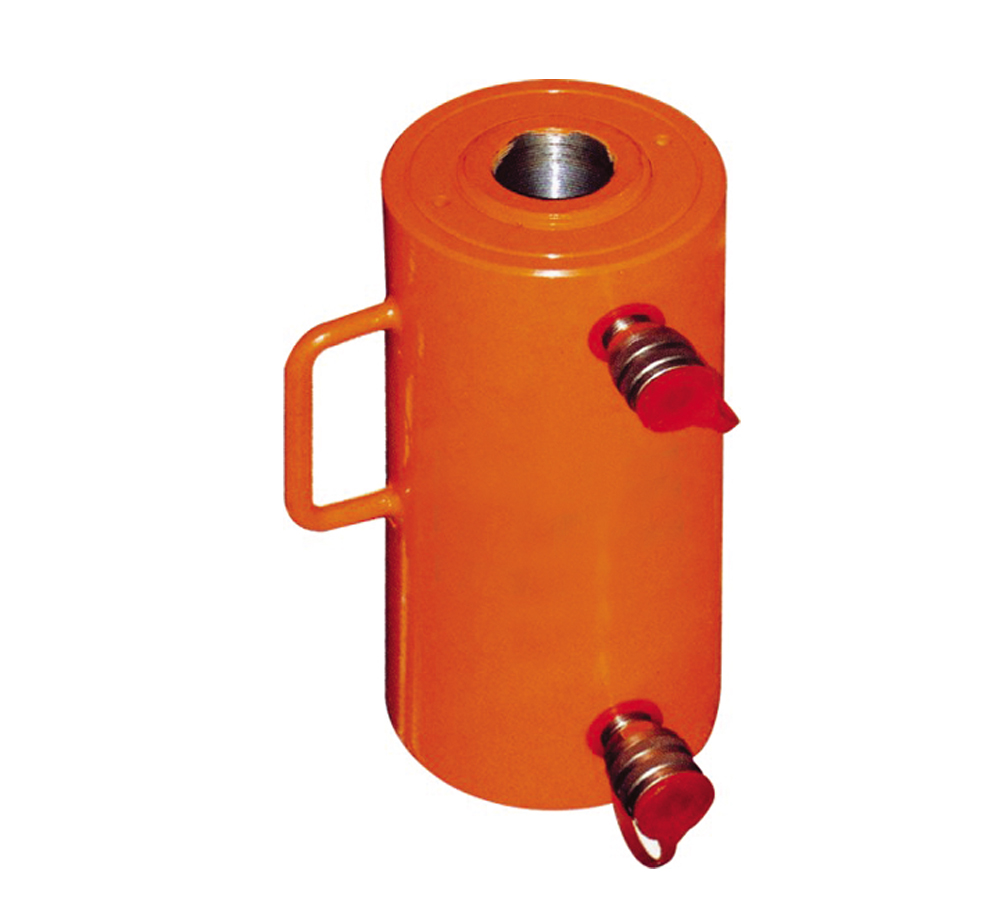

SJZ type hydraulic jack
Features: Equipped with ultra-high pressure electric oil pump to complete the work of tension jack. Easy operation, easy maintenance,
Uses: It is mainly suitable for the construction of various prestressed concrete structures, and is widely used in highways, railways, power stations, bridge construction, rock and soil anchoring, landslide treatment, overall lifting of large heavy objects, continuous thrusting of super-large parts, etc.
Uses: It is mainly suitable for the construction of various prestressed concrete structures, and is widely used in highways, railways, power stations, bridge construction, rock and soil anchoring, landslide treatment, overall lifting of large heavy objects, continuous thrusting of super-large parts, etc.
Ordering Consultation
Service Hotline：
|
Product Introduction

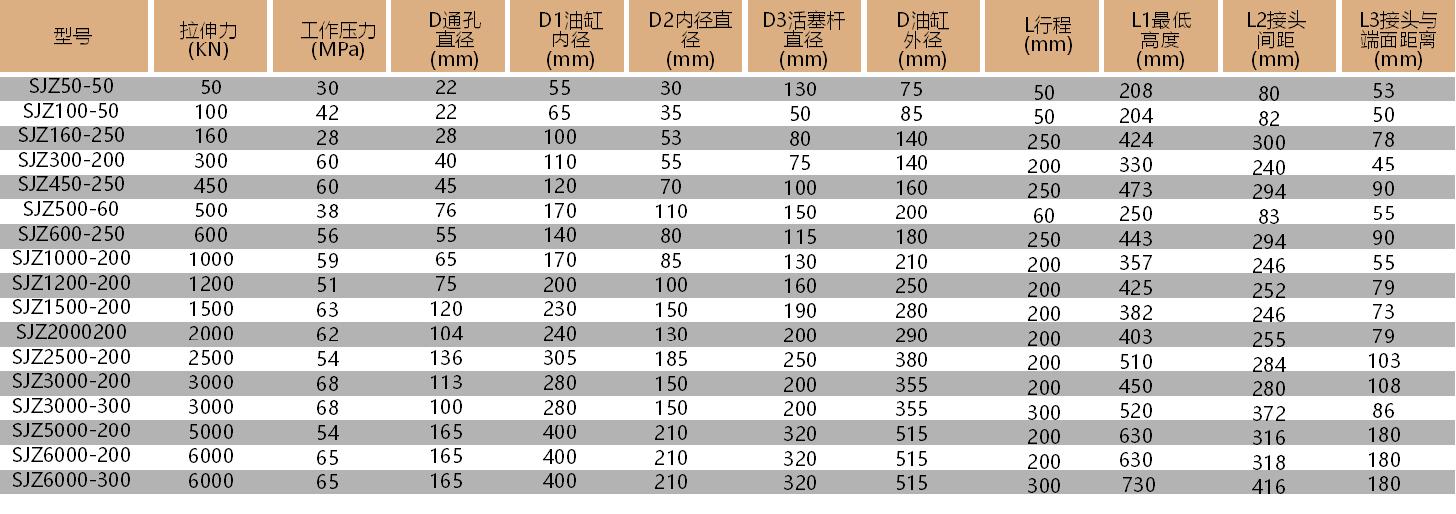

SJZ系列 雙作用張拉型液壓千斤頂
拉伸力：50-6000KN
行程：50-300mm
最大工作壓力：70MPa
產品特點：
雙作用設計、液壓復位
空心柱塞的設計既可以用于拉力，又可以用于推力
裝有安全閥防止超壓引起損壞
烤漆表面耐腐蝕能力更強
所有型號均含快速接頭與防塵帽
防塵圈減少污染，延長液壓缸壽命
適用方法與注意事項：
使用時，除應遵守一般操作工藝及規格外，還應注意下列問題：
為了保證量值傳遞正確性，對選用的千斤頂和泵站應配對進行量值標定，將拉伸力（或頂伸力）和液壓力繪制成圖表供操作時參考，并建立一個合理的檢定周期，遇下列幾種情況，亦應重新標定，
1、千斤頂修理后
2、更換壓力表
3、其它意外設備損壞
按照“千斤頂構造，液壓系統圖”，用高壓軟管將千斤頂和泵站連接起來，按下列步驟進行操作：
1、啟動泵站運轉，調定溢流閥至工作壓力（壓力數值參照前述標定結果
2、轉動換向閥手柄，千斤頂活塞既可作往復運動，完成張拉或頂升動作。
3、千斤頂動作結束時，務請即時切斷泵站電源，避免溢流閥長時間處于工作狀態，使油溫迅速升高，影響泵站使用壽命
4、高溫季節應密切注意油溫，當油溫超過70℃應考濾降溫措施。
